abusin
Oud Junkie
Posts: 442
Registered: 3-23-2006
Location: Manchester England
Member Is Offline
Mood: Ya Fuadi La Tasal
|
|
Best Regards
Awad
|
|
|
sabbassi
Oud Junkie
Posts: 570
Registered: 4-28-2008
Location: Morocoo
Member Is Offline
Mood: happy
|
|
Thank you danny and Awad
Edward, Khalid is building ouds for more than 40 years, his father was also a luthier. He is a master luthier in every word. his ouds come out like
from Factory like robots. he make the ouds himself, no little children helping etc. he does sharpen often using a professional shrpener. I don't know
th ename but if you look at dick.biz you could find it.
Best regards, Samir
|
|
|
Edward Powell
Oud Junkie
Posts: 1212
Registered: 1-20-2008
Member Is Offline
Mood: g'oud
|
|
Quote: Originally posted by sabbassi  | Thank you danny and Awad
Edward, Khalid is building ouds for more than 40 years, his father was also a luthier. He is a master luthier in every word. his ouds come out like
from Factory with robots. he make the ouds himself, no little children helping etc. he does sharpen often using a professional shrpener. I don't know
th ename but if you look at dick.biz you could find it.
|
Yeah Khalid is amazing... I remember watching him just take an exacto knife and cut FREEHAND perfect things like purfling channels etc... I just
couldn't believe it :-) ...and such a gentle and humble man also :-)
|
|
|
sabbassi
Oud Junkie
Posts: 570
Registered: 4-28-2008
Location: Morocoo
Member Is Offline
Mood: happy
|
|

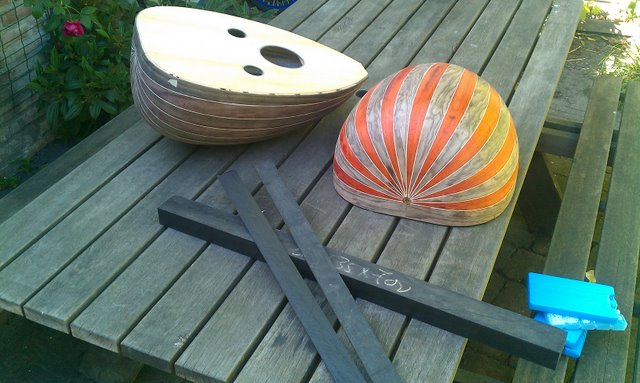

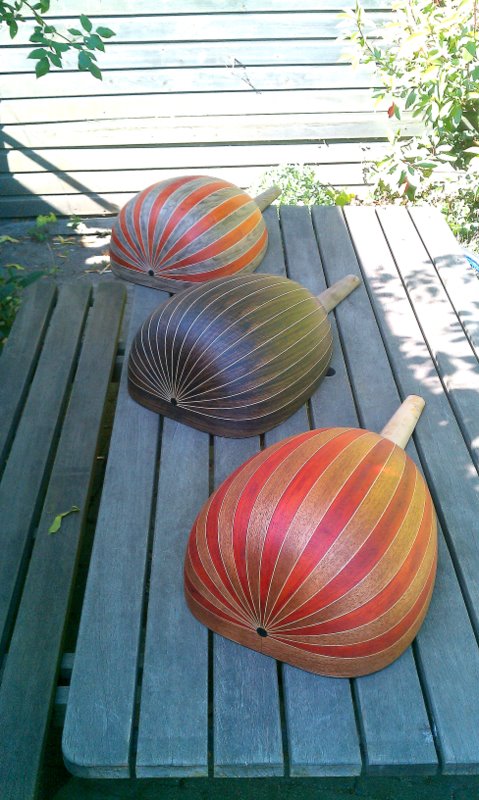

So Far
Sawing ebony ribs from the external purfling around the bow.
the internal strips are black/white/black/white + one wider black ebony
Best regards, Samir
|
|
|
sabbassi
Oud Junkie
Posts: 570
Registered: 4-28-2008
Location: Morocoo
Member Is Offline
Mood: happy
|
|
Progress

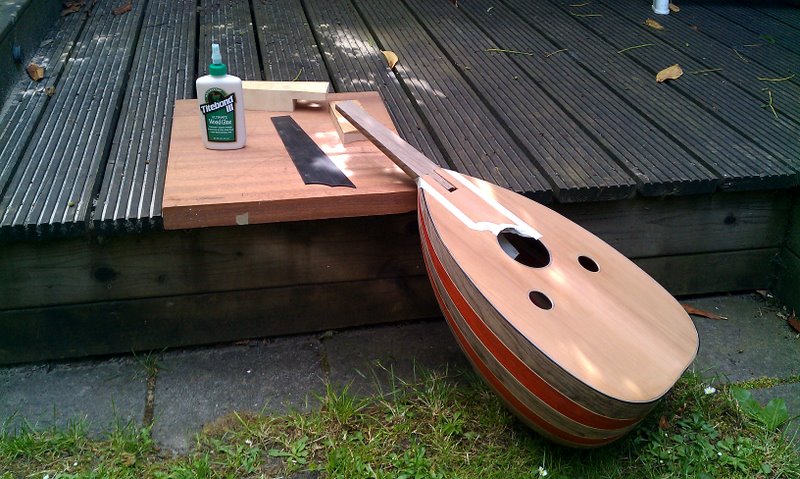

Preparing the ebony fingerbaord to be glued.
for this operation, I now use Titebond III instead of the Original Titebond because it gives mote setting up time to cure.
Best regards, Samir
|
|
|
sabbassi
Oud Junkie
Posts: 570
Registered: 4-28-2008
Location: Morocoo
Member Is Offline
Mood: happy
|
|
almost there

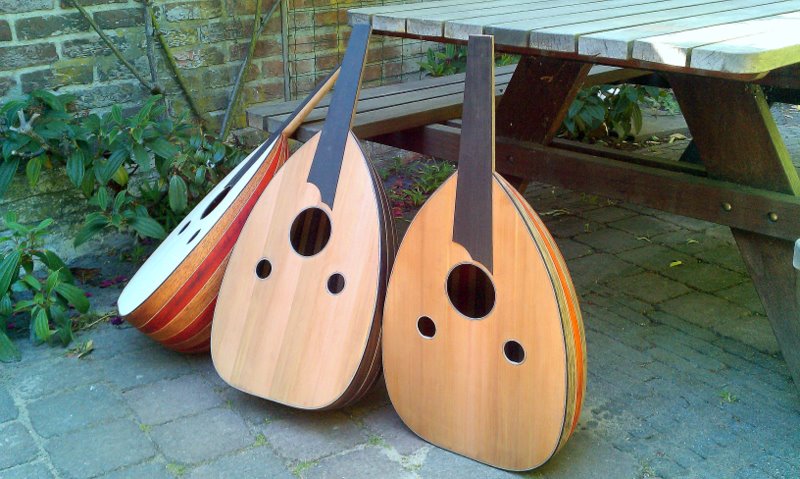

4 ouds are need only the pegbox and bridges to be mounted. A work to be done sometimes next week.
oud number 5 , the (wenge) will be finished later.
Best regards, Samir
|
|
|
Edward Powell
Oud Junkie
Posts: 1212
Registered: 1-20-2008
Member Is Offline
Mood: g'oud
|
|
| Quote: Originally posted by sabbassi | Preparing the ebony fingerbaord to be glued.
for this operation, I now use Titebond III instead of the Original Titebond because it gives mote setting up time to cure. |
Brilliant work!!!!!!!!!!
Why not use hide glue, or even titebond liquid hide glue for the fingerboards? What will you do if you need to remove it? Of course titebond also
will release with heat, but it is much more difficult to melt off than hide glue.
Beautiful ouds... VERY VERY INSPIRING! THANKS!
|
|
|
Edward Powell
Oud Junkie
Posts: 1212
Registered: 1-20-2008
Member Is Offline
Mood: g'oud
|
|
| Quote: Originally posted by sabbassi | 4 ouds are need only the pegbox and bridges to be mounted. A work to be done sometimes next week.
oud number 5 , the (wenge) will be finished later.
|
You are really a master already! ...and working so fast also.
Do you have any fotos of the soundboard bracing??
|
|
|
farid nada
Oud Lover
Posts: 15
Registered: 9-29-2010
Member Is Offline
|
|
It is splended
|
|
|
sabbassi
Oud Junkie
Posts: 570
Registered: 4-28-2008
Location: Morocoo
Member Is Offline
Mood: happy
|
|
Hi Edward, Thank you
It is like guitar making, most guitar maker don't use hide glue. it is more for Violin I presume. Also, I'm sure they didn't have Titebond back in the
middle ages .
There no need to remove the fingerboard, everything is checked many times before glueing . neck and body are water flat.
And as you said, with some heat even titebond can be removed in case there is an issue.
I have posted many artciles before with sound boards and bracing details in this forum. sorry didn't make them this time
thanks
Best regards, Samir
|
|
|
Marcus
Oud Junkie
Posts: 446
Registered: 11-26-2008
Location: Stuttgart/ South Germany
Member Is Offline
Mood: Lost in music
|
|
Hi Samir
as i watched all the vids of your ouds I must say I`m impressed how fast you become a "master luthier", like Edward said.
dkhoury35 asked allready if you plan, or if it is possible for you, to install a pickup/preamp-system in your ouds. Is it?
Another question,what about building a 7-course fixed bridge?
I`d love to own one, specially one that is made by you and availiable in Holland.
All the best,
Marcus
Playing the oud is like feeding my soul with peace
|
|
|
sabbassi
Oud Junkie
Posts: 570
Registered: 4-28-2008
Location: Morocoo
Member Is Offline
Mood: happy
|
|
Hi Marcus
Thank you for you compliments. There are many Pickup / pream-system. but that is no issue. Some of them are installed under the fixed bridge and need
to be fixed before the bridge is glued. other are just glued on the top of the soundboard. I can do that no problem.
I can sure build of 7 course for you, the ouds I'm making now are standard, the join on the neck is exactly 5.8mm and on the nut 3.8. will fit only 6
courses.
you need to tell me what wood preferences and I can start with it. and offcourse do you want it more bass(y) or more treble, etc...
but we can do it by mail.
thanks
regards,
Samir
Best regards, Samir
|
|
|
SamirCanada
Moderator
Posts: 3405
Registered: 6-4-2004
Member Is Offline
|
|
Hi Samir,
I am a bit quiet these days but I just wanted to give you my regards and encouragement. You are making some very nice instruments
Are you still using a table saw to cut all your wood? I am thinking of getting one this summer but I wonder what amount of HP is suitable for exotic
woods such as ebony and also what kind of blade are you using in it?
Thanks, Samir.
@samiroud Instagram
samiroudmaker@gmail.com
|
|
|
Yaron Naor
Oud Junkie
Posts: 275
Registered: 1-24-2009
Location: Bat Hefer, Israel
Member Is Offline
Mood: Happy
|
|
Great Work Sabbassi! and thanks for shearing
|
|
|
sabbassi
Oud Junkie
Posts: 570
Registered: 4-28-2008
Location: Morocoo
Member Is Offline
Mood: happy
|
|
Yaron, Thank you my friend I love your work too, Just foget smtimes to repost
forgive me.
SamirCanada. Thank you samir, I have noticed you abscence this days, must be busy
I use for most of heavy work the new purchased BOSCH PtS10 table saw. I use carbide saws, 1.7 mm kirf thikness , they cut less in expensive woods like
ebony and you can save some money with it. I also use it to cut the fingerboard, ribs etc. dangerous but very nice.
http://www.youtube.com/watch?v=iAQ-w_gdRNw
I have also a smal tabel saw from Proxxon. this one is a wonder. so quite yet powerfull. Proxxon FET.
regards,
Samir
Best regards, Samir
|
|
|
Ararat66
Oud Junkie
Posts: 1025
Registered: 11-14-2005
Location: Portsmouth, UK
Member Is Offline
Mood: mellow yellow
|
|
Hi there
'dangerous but very nice' just watch your fingers - seriously I've seen it happen ... maybe find another way if it feels edgy
Leon
|
|
|
Ararat66
Oud Junkie
Posts: 1025
Registered: 11-14-2005
Location: Portsmouth, UK
Member Is Offline
Mood: mellow yellow
|
|
ps ... that's a nice looking table saw though - I may need something similar for a project (not lutherie!!) I need to build this year.
Cheers
Leon
|
|
|
alan_mardan
Oud Addict
Posts: 39
Registered: 7-5-2008
Member Is Offline
Mood: happy
|
|
sabbassi,
You always present fantastic design with a taste of wood selection... have you already sold them or got any left
|
|
|
sabbassi
Oud Junkie
Posts: 570
Registered: 4-28-2008
Location: Morocoo
Member Is Offline
Mood: happy
|
|
Hi Alan,
Thank you, I have not sold anyone yet. If you are interested plese u2u me.
thanks
samir
Best regards, Samir
|
|
|
alan_mardan
Oud Addict
Posts: 39
Registered: 7-5-2008
Member Is Offline
Mood: happy
|
|
Sabbassi,
I did u2u you regarding another issue so please check it?
Cheers
|
|
|
sabbassi
Oud Junkie
Posts: 570
Registered: 4-28-2008
Location: Morocoo
Member Is Offline
Mood: happy
|
|
Almost there, pegs and strings
Hi Guys,

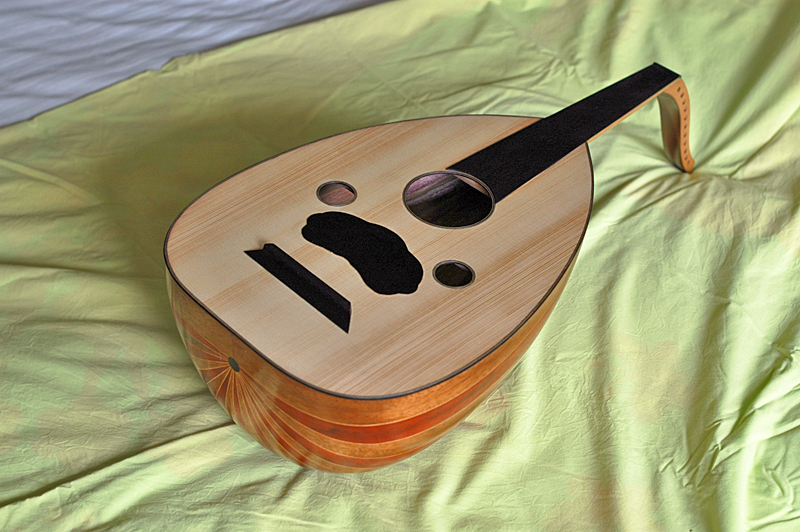

After a hard working weekend the bridge, nut and the pickguard are placed. the finger boards are flaterned and sanded.
I still need to shape the ebony pegs and place the strings.

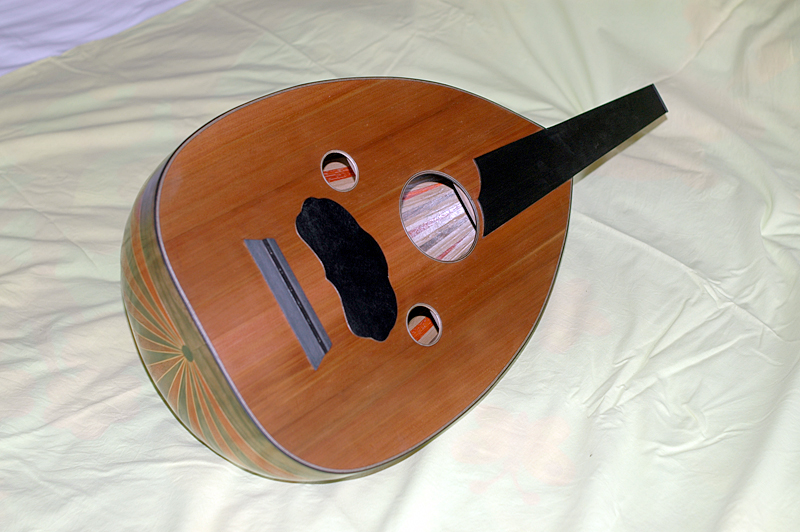

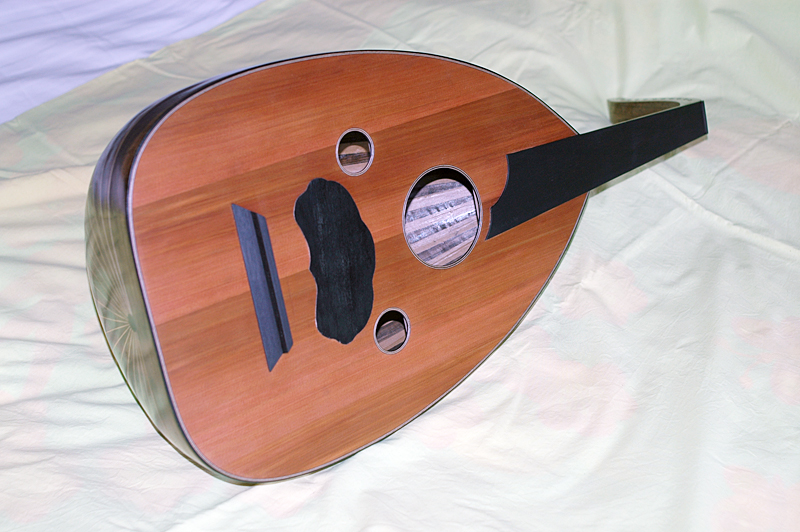

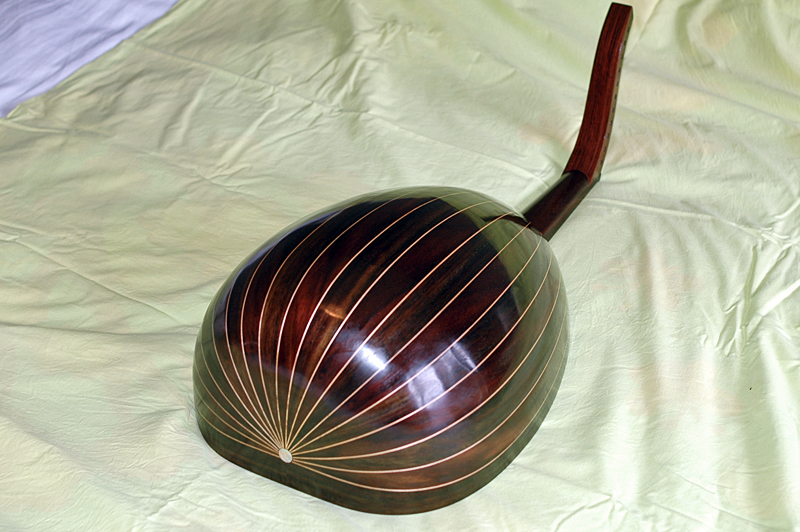

th dark ouds are difficult to make pictures of. the Indian rosewood hs mother of pearl dot at the back. the three others are from ebony.
new: the bridge it not at 90 degree as usual, but 5 degree more to the back. the knot of the strings is about 2 mm, this way I want to keep the
strings lenght net: 58,5cm exculding the knot.
the bridges are all from walnut, stained black
Best regards, Samir
|
|
|
sabbassi
Oud Junkie
Posts: 570
Registered: 4-28-2008
Location: Morocoo
Member Is Offline
Mood: happy
|
|

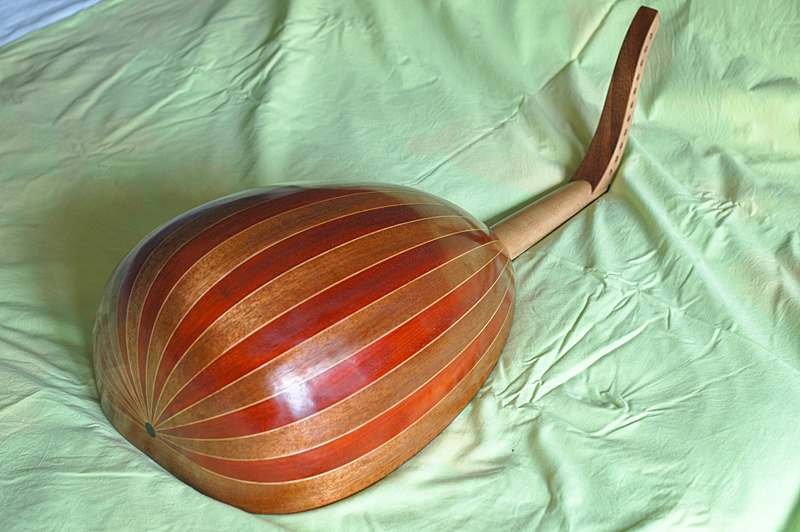

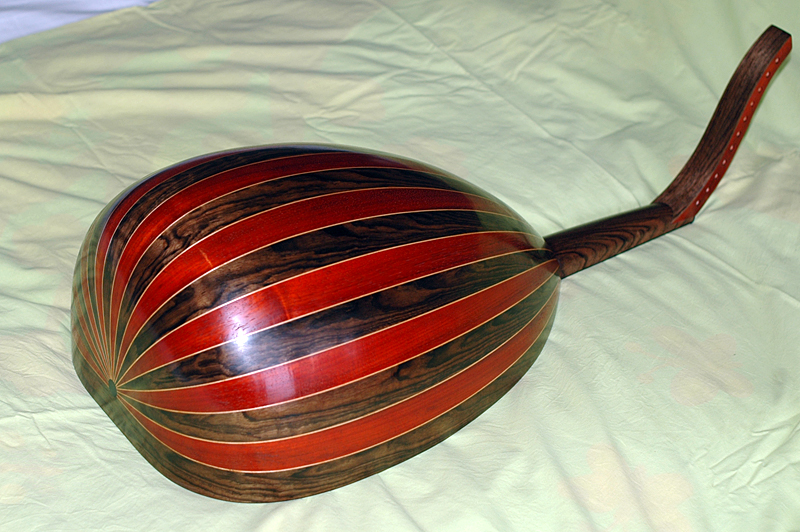

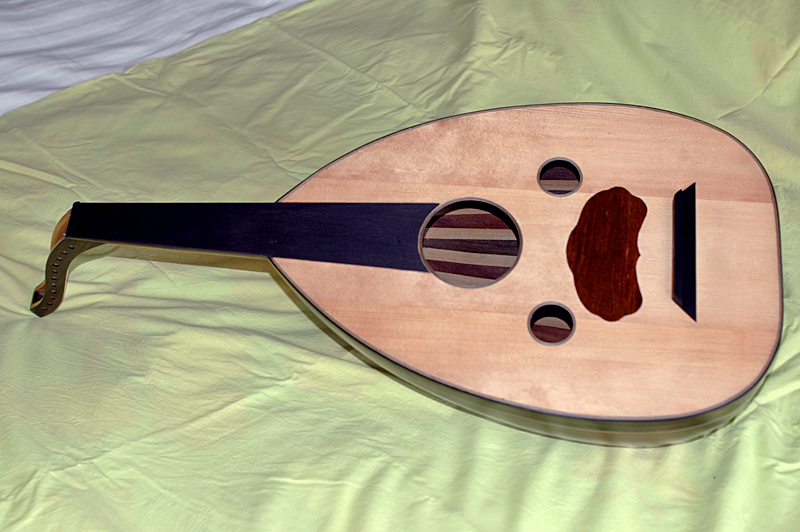

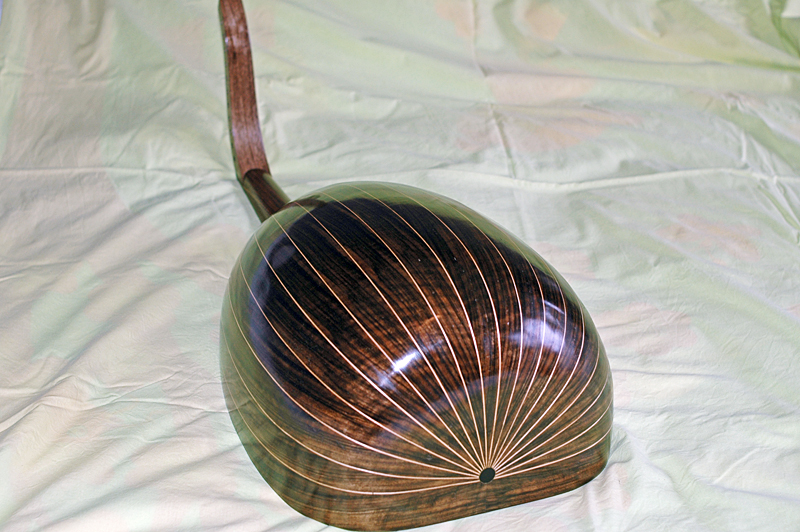

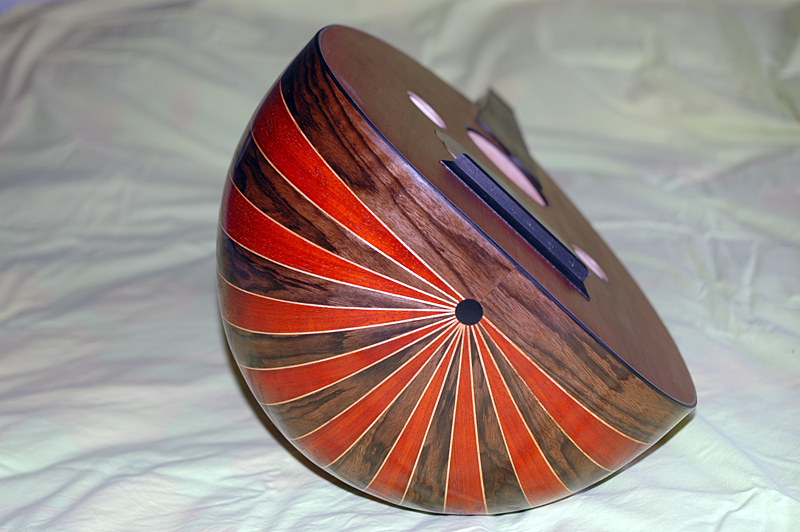

more pictures.
enjoy it
Best regards, Samir
|
|
|
Danielo
Oud Junkie
Posts: 365
Registered: 7-17-2008
Location: Paris
Member Is Offline
Mood: No Mood
|
|
Really great work Samir
regards,
Dan
|
|
|
sabbassi
Oud Junkie
Posts: 570
Registered: 4-28-2008
Location: Morocoo
Member Is Offline
Mood: happy
|
|

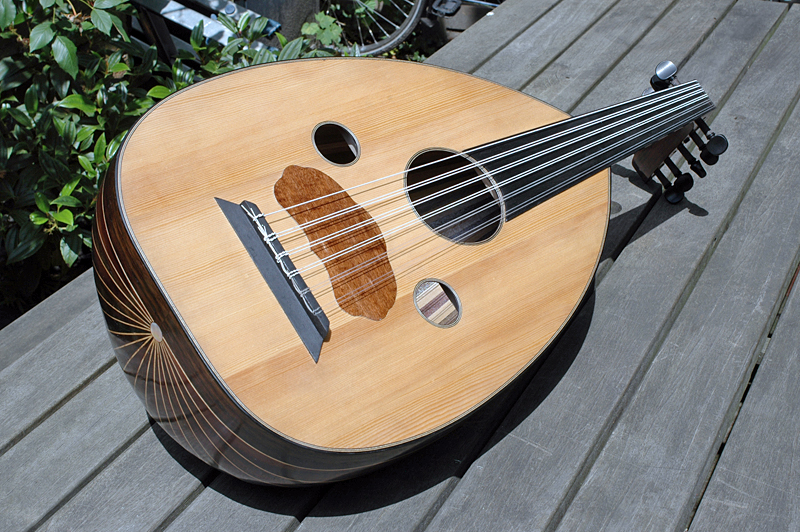

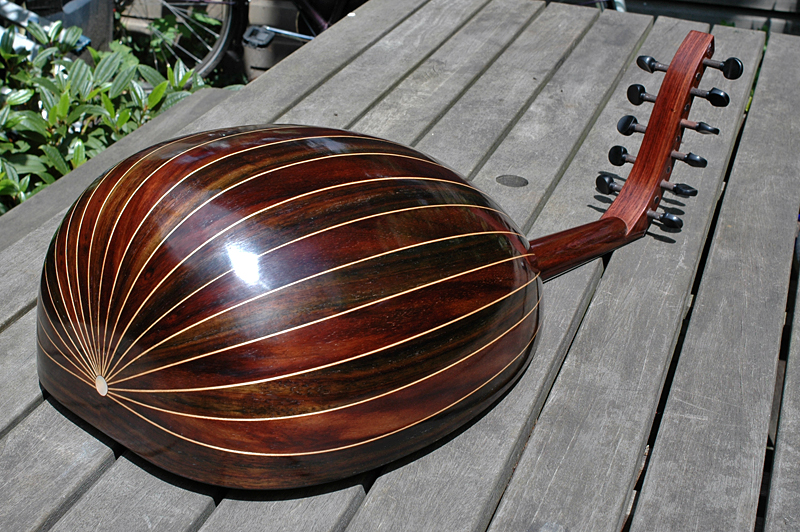

Indian Rosewood / aged spruce top
Thank you Dan
First oud is finished.
Strings ust mounted 3 hours ago. Labella strings (Do)
Best regards, Samir
|
|
|
Ararat66
Oud Junkie
Posts: 1025
Registered: 11-14-2005
Location: Portsmouth, UK
Member Is Offline
Mood: mellow yellow
|
|
Great stuff - lovely oud
btw who is playing on this vid you also posted
http://www.youtube.com/watch?v=_BWCvsnGPaU&NR=1
it is really beautiful and very sweet sounding
Cheers
Leon
|
|
|
