oud cutaway - (making an oud with a cutaway)
Hi Friends...
...does anyone have any tips on the best way to make an oud with a cutaway?
I found one site with an interesting cutaway - - -
http://www.claritanegra.com/workshop-projects-oud.htm
|
|
|
spyblaster
Oud Junkie
Posts: 285
Registered: 2-17-2010
Location: Iran - Karaj
Member Is Offline
|
|
Burhan Cesni from Turkey makes some similar ouds. There are some other models by Fadi Matta(Lebanon), Kave Ghorbanzade and Arafati (Iran) which you
maybe interested in.
you can find Kave and Burhan on facebook.
The Oud is my life, n my life is the Oud
|
|
|
Edward Powell
Oud Junkie
Posts: 1212
Registered: 1-20-2008
Member Is Offline
Mood: g'oud
|
|
thanks spy - - I really wonder how to make one of those twisted backs??
|
|
|
Microber
Oud Junkie
Posts: 853
Registered: 1-20-2006
Location: Belgium - Liège
Member Is Offline
Mood: No Mood
|
|
Saad Al Tayyar also make cutaway.
http://www.mikeouds.com/messageboard/viewthread.php?tid=11928#pid81...
|
|
|
spyblaster
Oud Junkie
Posts: 285
Registered: 2-17-2010
Location: Iran - Karaj
Member Is Offline
|
|
Yes Fadi's design is the most complicated model I've ever seen and probably a little tricky. other models shouldn't be a problem (for you of course,
not me  )

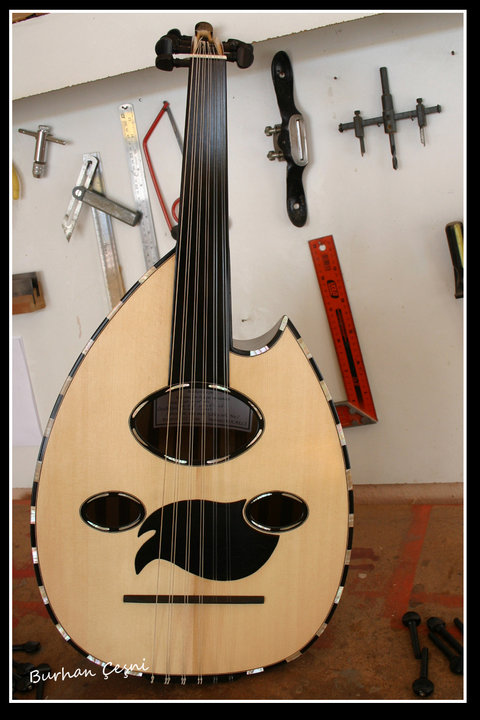

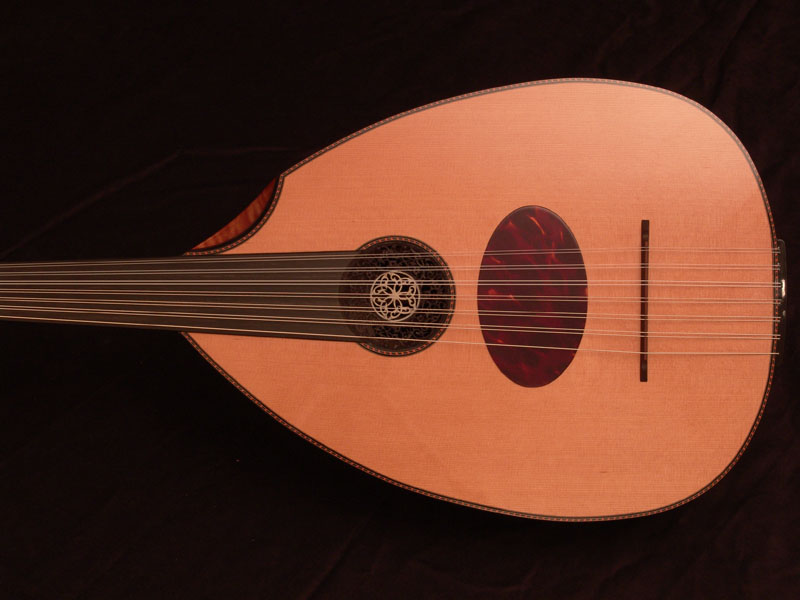

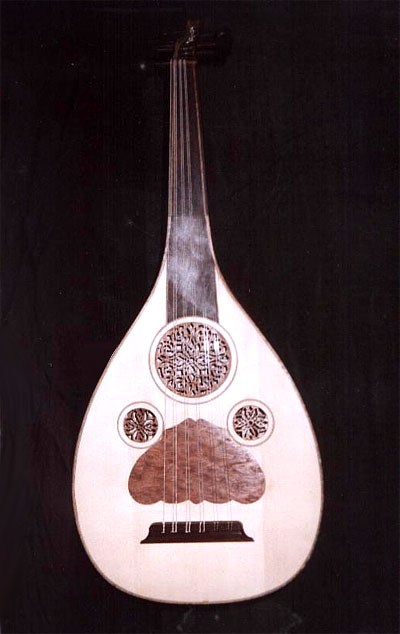

this is from Kave's facebook profile:
The Oud is my life, n my life is the Oud
|
|
|
spyblaster
Oud Junkie
Posts: 285
Registered: 2-17-2010
Location: Iran - Karaj
Member Is Offline
|
|

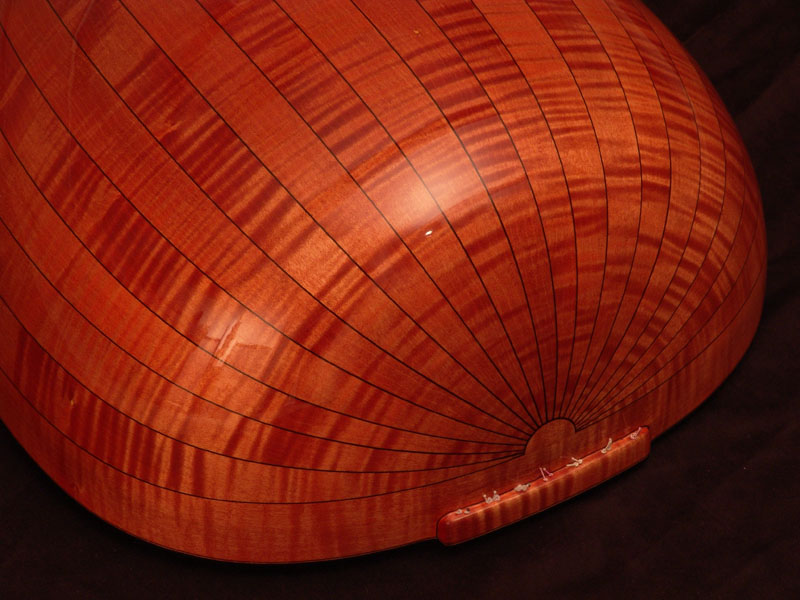

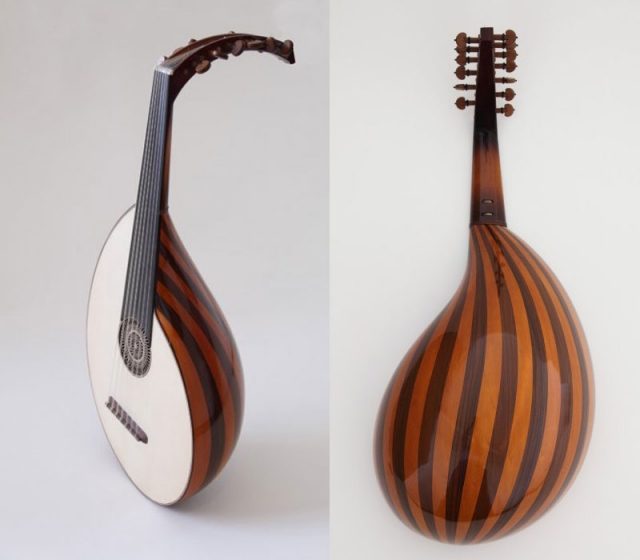

and this is how Fadi's design looks like from the back. do u really like to make such a thing?!
The Oud is my life, n my life is the Oud
|
|
|
Edward Powell
Oud Junkie
Posts: 1212
Registered: 1-20-2008
Member Is Offline
Mood: g'oud
|
|
Thanks Micro!
...I think this simple (not exaggerated) design will solve my problem... thanks so much!
|
|
|
Edward Powell
Oud Junkie
Posts: 1212
Registered: 1-20-2008
Member Is Offline
Mood: g'oud
|
|
The Fati design is really inspiring - I would not do it just like that but it is inspiring how it is possible to twist and alter the basic shape
somewhat. . . I wonder just how he does it?
|
|
|
BaniYazid
Oud Junkie
Posts: 225
Registered: 8-20-2010
Location: France
Member Is Offline
|
|
There was some pictures of the construction process in this post : http://www.mikeouds.com/messageboard/viewthread.php?tid=6543
|
|
|
theodoropoulos
Oud Junkie
Posts: 177
Registered: 12-21-2008
Location: Greece
Member Is Offline
Mood: No Mood
|
|
i try to find the photos from the construction of this amazing Fadi Oud ,but i cannot...
Could you please help me see this construction???
|
|
|
Alfaraby
Oud Junkie
Posts: 796
Registered: 9-18-2009
Location: Holy Land
Member Is Offline
Mood: Cool
|
|
Quote: Originally posted by theodoropoulos  | i try to find the photos from the construction of this amazing Fadi Oud, but I cannot...
Could you please help me see this construction ??? |
As fascinated as I was then, I spared these photos in case ...
Yours indeed
Alfaraby

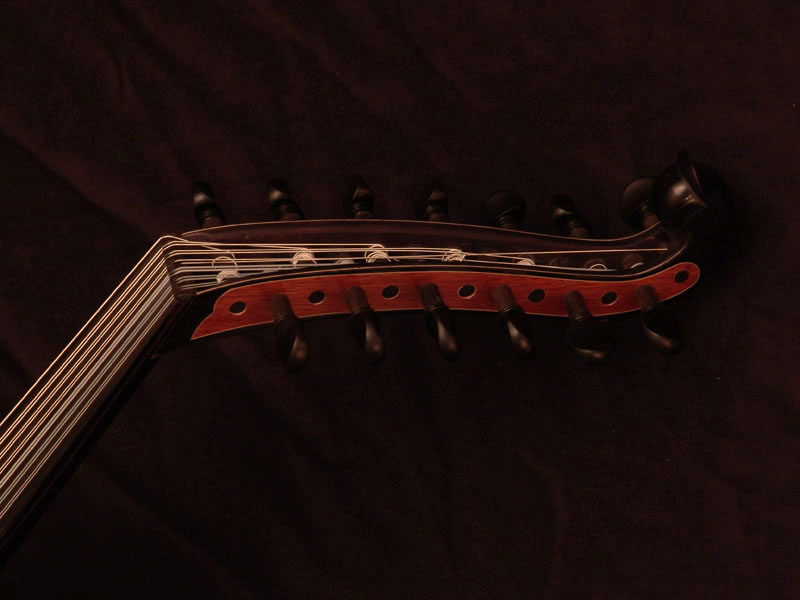

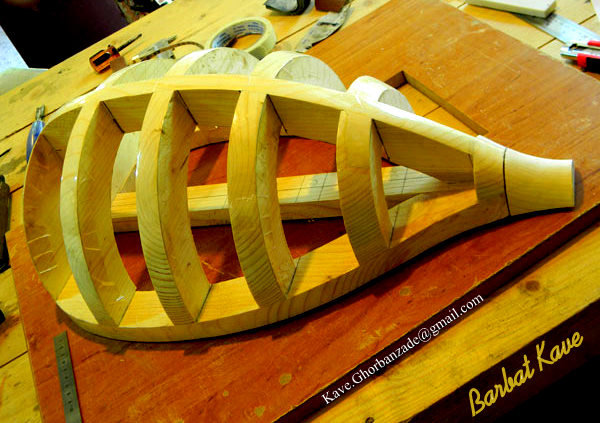

[file]29446[/file] [file]29448[/file] [file]29450[/file] [file]29452[/file] [file]29454[/file] [file]29456[/file]
alfarabymusic@gmail.com
|
|
|
theodoropoulos
Oud Junkie
Posts: 177
Registered: 12-21-2008
Location: Greece
Member Is Offline
Mood: No Mood
|
|
Thank you so much!!
i appreciate your help!!
my real question was to see the construction process,and how the ribs where twisted! ...
thank you so much again!!
ps:what are those things at the back of the neck??i never understood this!
|
|
|
Alfaraby
Oud Junkie
Posts: 796
Registered: 9-18-2009
Location: Holy Land
Member Is Offline
Mood: Cool
|
|
Action adjusting mechanism.
Sorry, I didn't save all the photos of that thread.
Thank you
Yours indeed
Alfaraby
alfarabymusic@gmail.com
|
|
|
ALAMI
Oud Junkie
Posts: 645
Registered: 12-14-2006
Location: Beirut
Member Is Offline
Mood: No Mood
|
|
Although this oud was masterfully constructed by Fadi Matta, a difficult task that I believe very few luthiers would have achieved the way Fadi did,
the design was done by me. It was a process that took place right here on the forums with the help, encouragement, and great suggestions from many
members here specially my friend John Downing.
The oud was first a geometrical concept and I first "virtually" designed and constructed it using a 3D software. then I constructed the solid mold,
Fadi took it from there and made the real oud. It took him 2 months of work and chose to put the #1 on the label with our both names.
The ribs, before bending, were planar but not linear. their shape was calculated by a "UV unwrapping" 3D software. Fadi constructed the bowl very
slowly as the wood needs time to take the double axis bending.
Although the design itself is registered in my name, I really don't mind that someone can be inspired to take it further, add to it, make it better
instead of just copying it without an added creativity or added value.
The sound revealed to be very nice and clean and after 4 years of construction the oud showed a perfect structural integrity, no deformations, no
cracks, still as perfect as the first day.

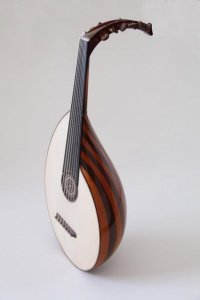

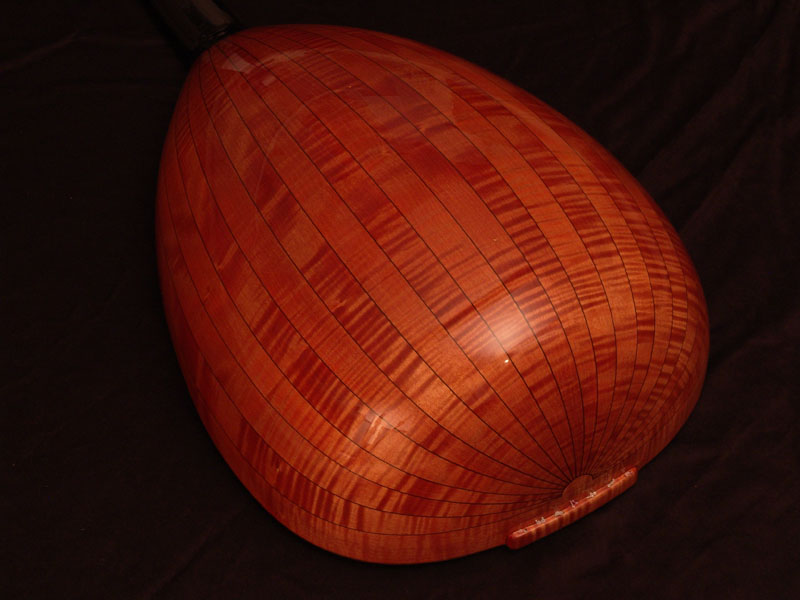

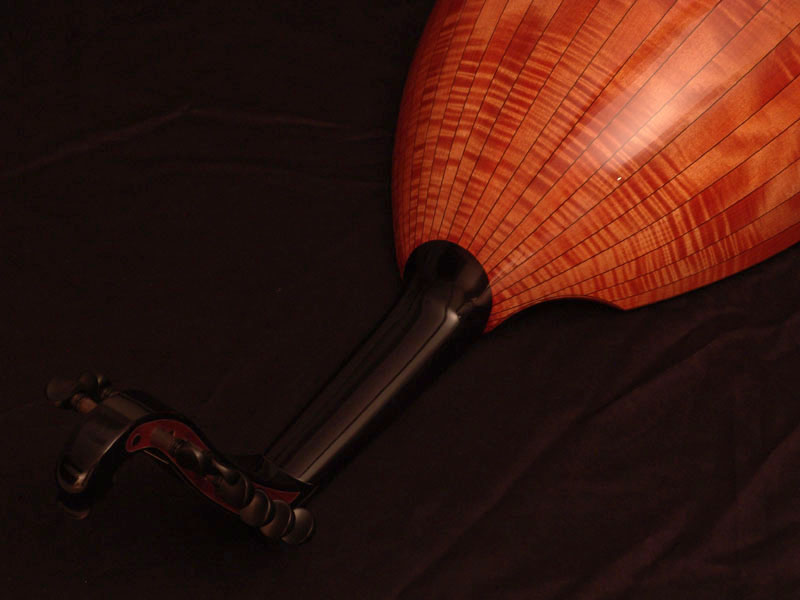

here are some photos of the process:
[file]29460[/file] [file]29462[/file] [file]29458[/file] [file]29464[/file] [file]29466[/file]
[file]29468[/file]
|
|
|
ALAMI
Oud Junkie
Posts: 645
Registered: 12-14-2006
Location: Beirut
Member Is Offline
Mood: No Mood
|
|
Some others

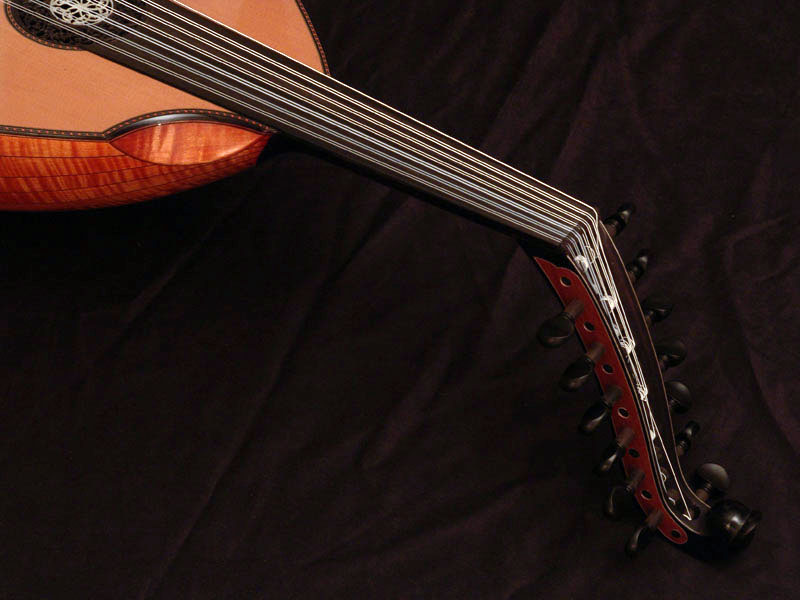

[file]29470[/file]
[file]29472[/file] [file]29474[/file]
[file]29476[/file]
|
|
|
theodoropoulos
Oud Junkie
Posts: 177
Registered: 12-21-2008
Location: Greece
Member Is Offline
Mood: No Mood
|
|
my friend i have no words to express HOW MUCH I LOVE this thing....
my big question is how did he twisted the ribs....
perhaps a photo of a rib ready to be glued would be a good idea!!
but anyway all those photos are very helpfull...
You Sir are a genius...
total repect and this is the most astonishing thing i have ever seen in my whole life...
any further photos would be helpfull to understand this ....
Greetings from Greece!!
|
|
|
ALAMI
Oud Junkie
Posts: 645
Registered: 12-14-2006
Location: Beirut
Member Is Offline
Mood: No Mood
|
|
Many thanks for your kind words, neighbor

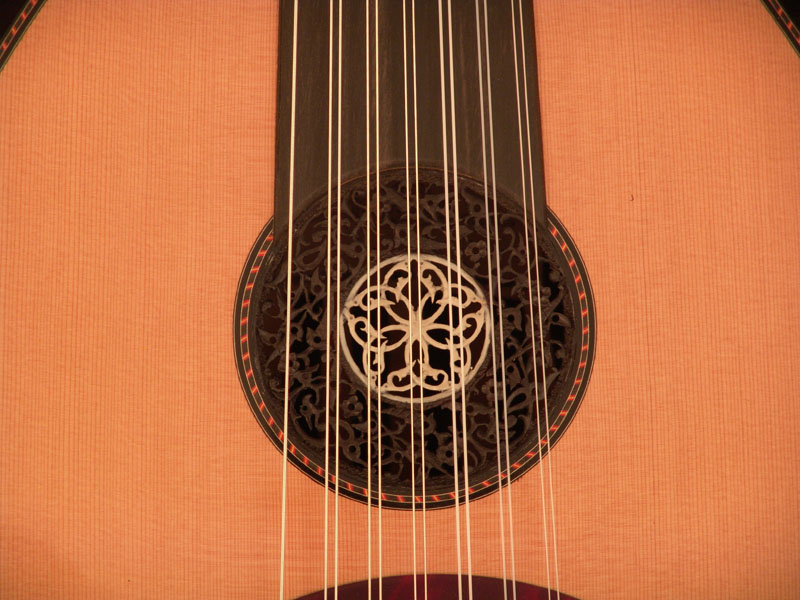

here are some new pics of bent ribs before gluing.
In fact each rib is different
[file]29484[/file]
[file]29486[/file]
|
|
|
theodoropoulos
Oud Junkie
Posts: 177
Registered: 12-21-2008
Location: Greece
Member Is Offline
Mood: No Mood
|
|
wowwwww
i am impressed!!!
this thing is out of this earth!!
|
|
|
Oud Freak
Oud Junkie
Posts: 292
Registered: 11-23-2007
Member Is Offline
Mood: Oud Jerk
|
|
I also watched him a little, building this beauty. No pictures can really show how the ribs were twisted. Amazingly impressive and perfectly
executed.
How he corrected the initial bowl and made it into a new special bowl, is also unbelievable!
|
|
|
theodoropoulos
Oud Junkie
Posts: 177
Registered: 12-21-2008
Location: Greece
Member Is Offline
Mood: No Mood
|
|
ι am jealous!!!!lucky one Freak!
|
|
|
Oud Freak
Oud Junkie
Posts: 292
Registered: 11-23-2007
Member Is Offline
Mood: Oud Jerk
|
|
| Quote: Originally posted by ALAMI | Although this oud was masterfully constructed by Fadi Matta, a difficult task that I believe very few luthiers would have achieved the way Fadi did,
the design was done by me. It was a process that took place right here on the forums with the help, encouragement, and great suggestions from many
members here specially my friend John Downing.
The oud was first a geometrical concept and I first "virtually" designed and constructed it using a 3D software. then I constructed the solid mold,
Fadi took it from there and made the real oud. It took him 2 months of work and chose to put the #1 on the label with our both names.
The ribs, before bending, were planar but not linear. their shape was calculated by a "UV unwrapping" 3D software. Fadi constructed the bowl very
slowly as the wood needs time to take the double axis bending.
Although the design itself is registered in my name, I really don't mind that someone can be inspired to take it further, add to it, make it better
instead of just copying it without an added creativity or added value.
The sound revealed to be very nice and clean and after 4 years of construction the oud showed a perfect structural integrity, no deformations, no
cracks, still as perfect as the first day.
here are some photos of the process:
|
Hi Alami, hope you're doing great! Just a small suggestion, which is to add a pic of the bowl that Fadi Matta made after he adjusted the initial toast
rack you have made. I think that possibly the most delicate and difficult part for Fadi was to make the new bowl...
Cheers!
|
|
|
![[*]](images/xmbprobrown/default_icon.gif){kind=icon}
